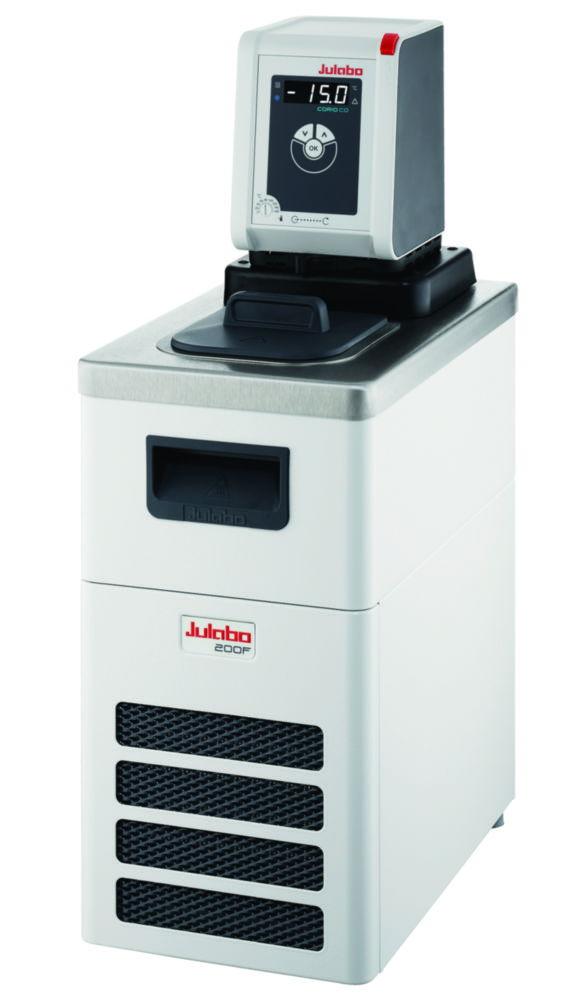

Refrigerated/Heating Circulator CORIO CD-600F
Representative image only

Refrigerated/Heating Circulator CORIO CD-600F

Sold by: John Morris Scientific NZ
Available Soon
Part #: 4.658 011Manufacturer #: 9012704
Estimated shipping time:Contact us via live chat or via contact us page

NZ $22981.66

See the available (12) variant products
Product overview
Refrigerated circulators are suitable for internal and external standard temperature applications as well as routine work in laboratories and industry.

  • Bright, white, easy-to-read display

  • Easy pump switching between internal and external circulation

  • External pump connections (M16x1)

  • USB connection

  • Space-saving cooling coil design yields more usable space in the bath tank

  • Stainless steel bath tank including bath lid and drain tap

  • Removable ventilation grid

  • Refrigeration unit without lateral ventilation openings

  • 2 hose olives each suitable for hose inner diameter 8 and 12 mm included

  • Class III (FL) acc. to DIN 12876-1
Product Specifications
  • HS Code #84198998
  • Bath depth150 mm
  • Cooling capacity at 20 °C0,6 kW
  • Depth opening150 mm
  • Opening (WxD)220 x 150 mm
  • Ext. dim. (WxDxH)330 x 470 x 690 mm
  • Ext. depth470 mm
  • Ext. height690 mm
  • Ext. width330 mm
  • Heating capacity2 kW
  • IP codeIP 21
  • Material bathStainless steel
  • Max. delivery pressure0.35 bar
  • Max. temperature150 °C
  • Max. volume bath7.5 l
  • Min. temperature-35 °C
  • Min. volume bath5 l
  • RefrigerantR449A
  • Temperature stability±0,03 °C
  • Temperature-35 ... 150 °C
  • TypeCD-600F
  • Type of auxiliary energyMains connection
  • Volume bath5 ... 7.5 l
  • Weight36 kg
  • Width opening220 mm
  • With lidYes
  • With timerYes
