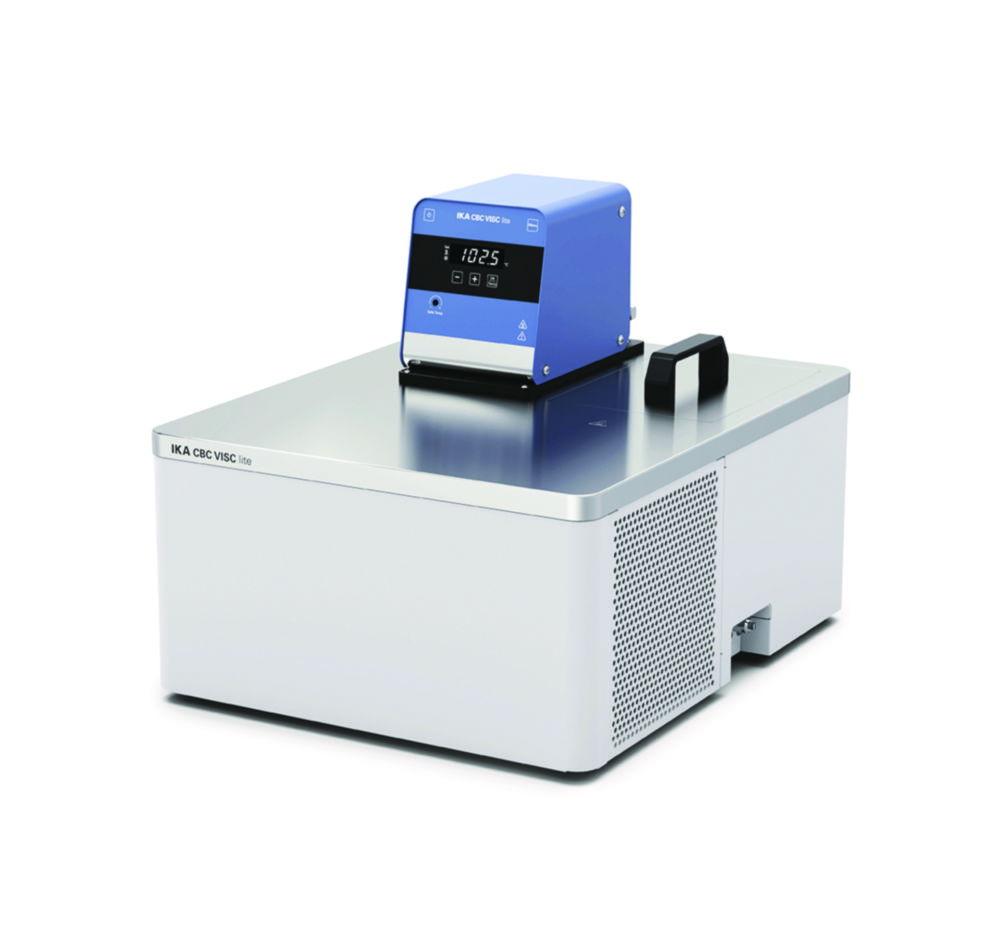

IKA Refrigerated And Heating Circulator CBC Visc Lite S3 CH Plug
Sold by: John Morris Scientific NZ
Available Soon
Part #: 4.699 425Manufacturer #: 0020117186
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
The IKA Refrigerated And Heating Circulator CBC Visc Lite S3 CH Plug is designed for combination with IKA ROTAVISC viscometers and covers a wide temperature range for controlled viscosity measurement workflows. It supports fast and precise temperature control with optimised water flow management in the insulated bath and uses environmentally friendly natural refrigerant R290.
Key Features:
- Brand: IKA
- Product Type: Refrigerated and heating circulator
- Model: CBC Visc Lite S3
- Plug Type: CH plug
- Compatibility: Designed for combination with IKA ROTAVISC viscometers
- Temperature Range: Covers a wide temperature range
- Beaker Support: A second 600 ml beaker can be pre-tempered during measurement
- Water Flow Management: Optimised water flow management in the insulated bath for fast and precise temperature control
- Refrigerant: Environmentally friendly natural refrigerant R290
- External Pump Connection: For heating standard vessels according to DIN for absolute viscosity definition with ELVAS spindles or double-walled beakers
- Maintenance: Easy to maintain with easily removable and easy-to-clean air filters
This IKA CBC Visc Lite S3 refrigerated and heating circulator is suitable for laboratories requiring precise temperature control for ROTAVISC viscosity measurements.
Product Specifications
- HS Code #84198998
- Cooling capacity at 20 °C450 W
- Depth opening218 mm
- Opening (WxD)150 x 218 mm
- Ext. dim. (WxDxH)414 x 506 x 392 mm
- Ext. depth506 mm
- Ext. height392 mm
- Ext. width414 mm
- Power supply frequency50/60 Hz
- Heating capacity2000 W
- IP codeIP 21
- Max. delivery pressure0.35 bar
- Max. suction pressure0.15 bar
- Max. temperature125 °C
- Max. voltage230 V
- Max. volume bath8.5 l
- Min. temperature-25 °C
- Min. volume bath5.5 l
- OperationMembrane keyboard
- Plug typeCH
- Power supply230 V, 50/60 Hz
- Temperature stability±0,05 K
- Temperature-25 ... 125 °C
- TypeCBC VISC lite
- Type of auxiliary energyMains connection
- Type of displayLED
- Volume bath5.5 ... 8.5 l
- Weight29 kg
- Width opening150 mm
- With lidYes
- With timerNo
Variant products
Products related to this item (2)
product | Mfr # | Part # | Product name | Plug type | Type | Price | Availability | |
0020117185 | 4.699 405 | IKA Refrigerated And Heating Circulator CBC Visc Lite S2 UK Plug | UK | CBC VISC lite | $11090.45 | |||
0020102007 | 4.699 373 | IKA CBC Visc Lite EU Plug | EU | CBC VISC lite | $11090.45 |
