Representative image only

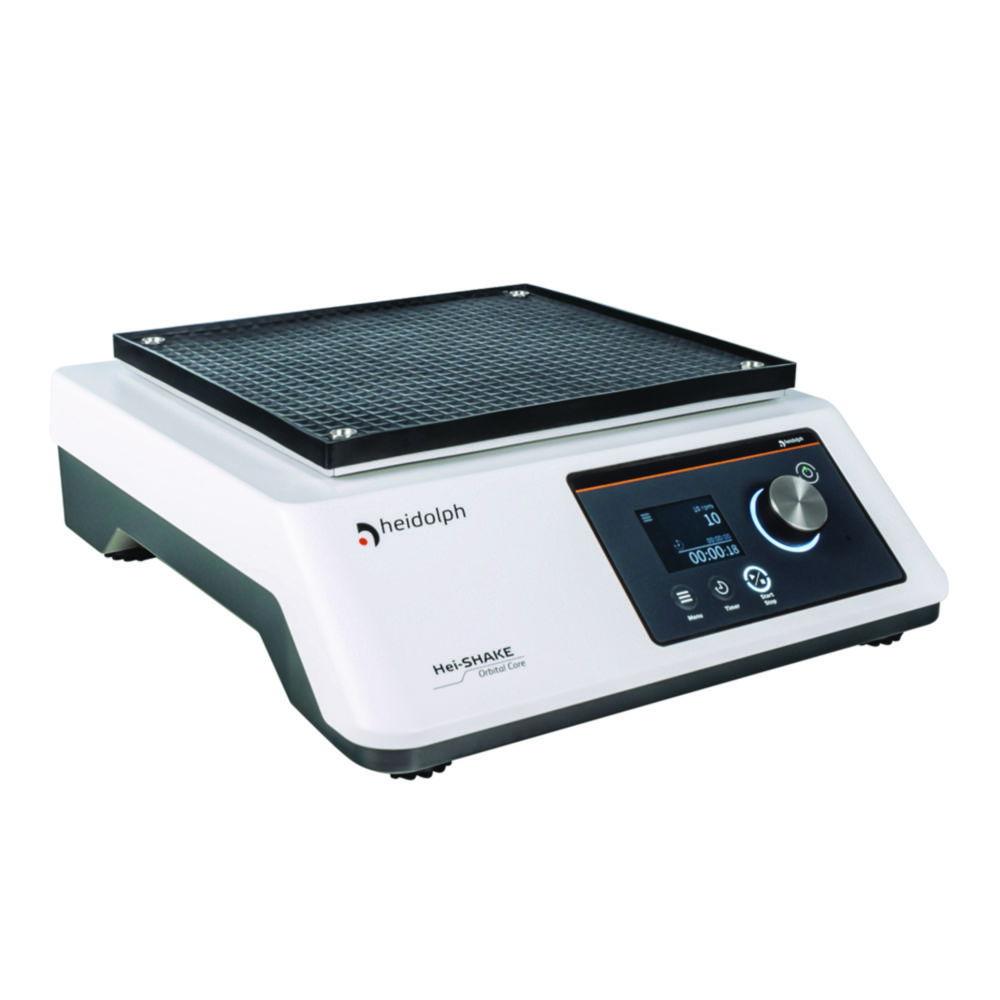

Heidolph Hei-SHAKE Orbital Core CH 356 × 129 × 403 mm 100-240 V, 50/60 Hz
Sold by: John Morris Scientific NZ
Available Soon
Part #: 4.712 259Manufacturer #: 546-11400-04
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
The Heidolph Hei-SHAKE Orbital Core CH is a versatile orbital shaker designed for efficient mixing and agitation in laboratory applications. Measuring 356 × 129 × 403 mm, it operates on a wide voltage range of 100-240 V and supports both 50 and 60 Hz frequencies, making it adaptable worldwide. This shaker delivers consistent orbital motion, ensuring uniform sample treatment for reliable experimental results.
Key Features:
- Brand: Heidolph
- Model: Hei-SHAKE Orbital Core CH
- Dimensions: 356 × 129 × 403 mm
- Voltage: 100-240 V
- Frequency: 50/60 Hz
- Application: Ideal for sample mixing, shaking, and laboratory agitation
- Design: Durable construction for reliable and continuous operation
Scope of Supply:
- Orbital shaker unit
- Flat rubber mat 1000
The Heidolph Hei-SHAKE Orbital Core CH is perfect for laboratories needing precise and reliable orbital shaking performance.
Product Specifications
- HS Code #84798200
- Depth403 mm
- Depth moving table263 mm
- Dimensions (WxDxH)356 x 403 x 129 mm
- DisplayDigital
- Power supply frequency50/60 Hz
- Height129 mm
- IP codeIP 32
- Max. loading capacity15 kg
- Max. permitted ambient temp.31 °C
- Max. relative humidity rate80 %
- Max. speed530 1/min
- Max. voltage240 V
- Min. permitted ambient temperature5 °C
- Min. speed1 1/min
- Min. voltage100 V
- Moving table (WxD)294 x 263 mm
- Permitted ambient temperature5 ... 31 °C
- Plug typeCH
- Power supply100 ... 240 V, 50/60 Hz
- Rated capacity90 W
- Shaking stroke20 mm
- Speed1 ... 530 1/min
- TypeHei-SHAKE Orbital Core
- Type of movementOrbital
- UNSPSC41103811
- Weight14 kg
- Width356 mm
- Width moving table294 mm
- With timerYes
- Manufacturer Article Number546-11400-04
