Representative image only

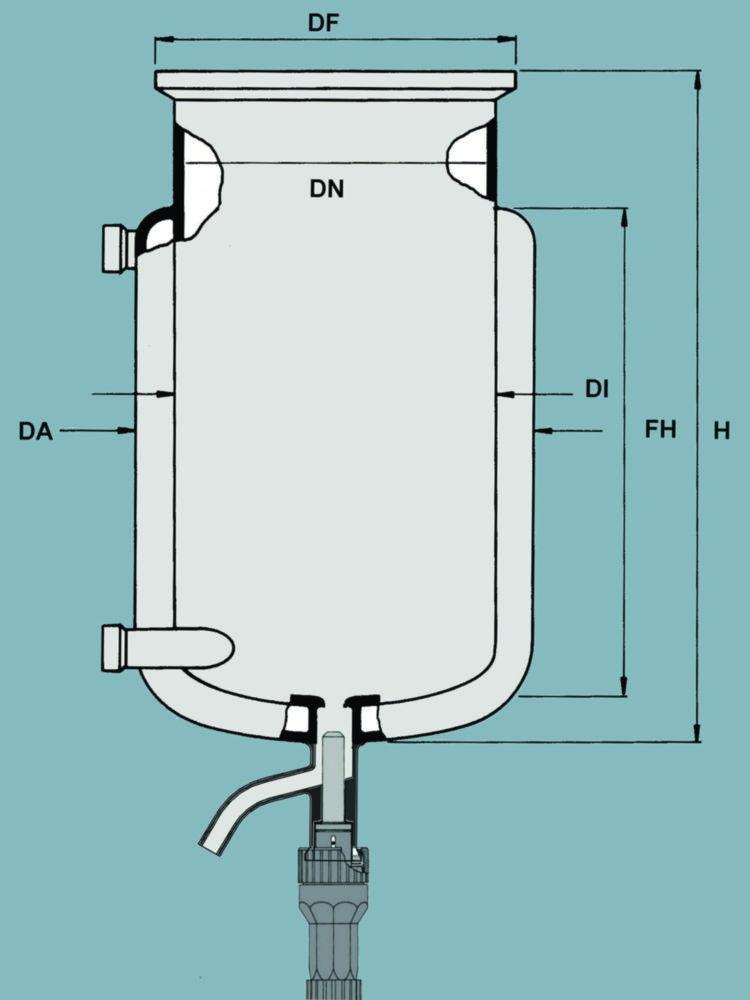

Flat ground flange reaction vessels 500 ml, DN 100
Sold by: John Morris Scientific NZ
Available Soon
Part #: 9.142 038Manufacturer #: 3 151 005S
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
Flange with groove in accordance with DIN 12214. Flask with thermostatic jacket and type "T" 10mm bore PTFE drain valve.
Product Specifications
- HS Code #70172000
- DN100
- Ext. Ø140 mm
- Flange ext. Ø138 mm
- Height int.75 mm
- Nominal capacity500 ml
- Overall height165 mm
- With jacketYes
Downloads
- HWS-Flat Flange Vessels Data SheetDownload
