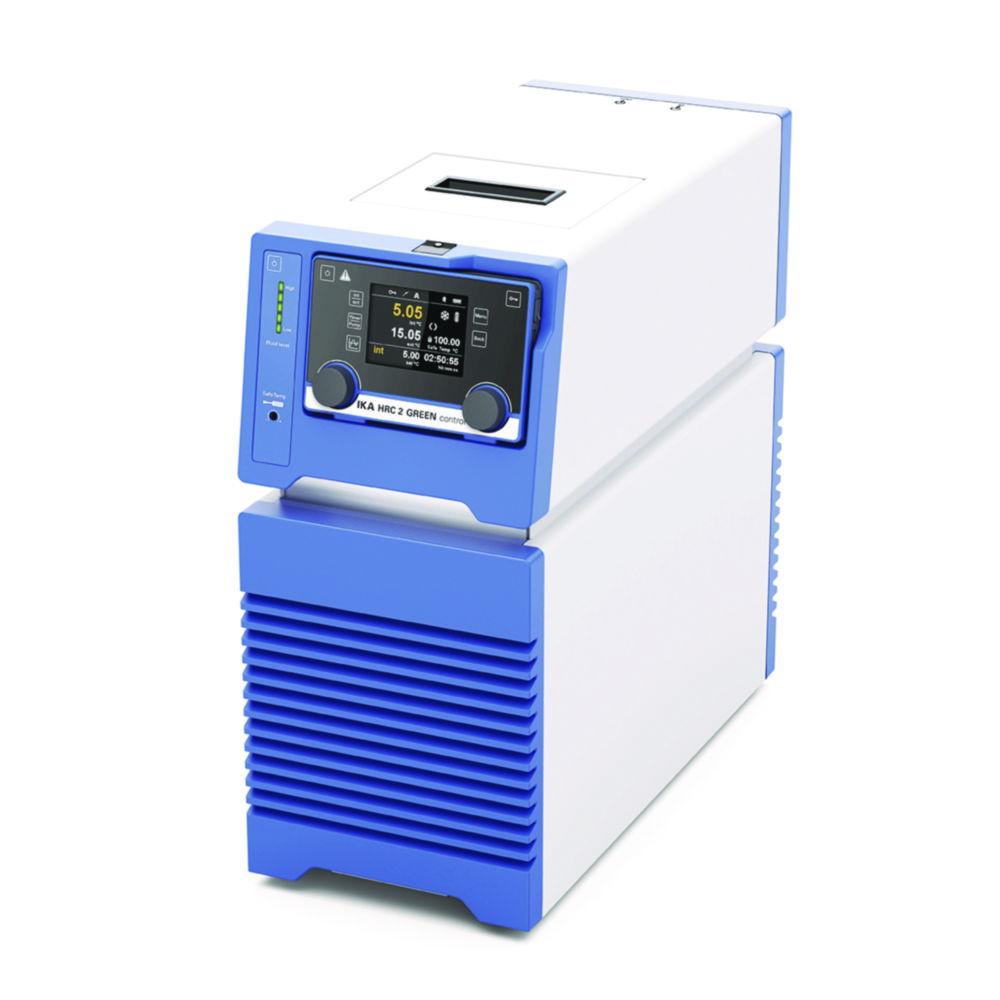

Cooling a.heating circulator HRC 2 GREEN controlS1 US model
Sold by: John Morris Scientific NZ
Available Soon
Part #: 4.714 313Manufacturer #: 0020128747
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
- With wireless controller (WiCo)
- LEMO socket for connecting an external PT 100 temperature sensor
- 10 freely programmable temperature ramps with 10 steps each
- Timer/counter function
- Degassing function
- Connection for solenoid valves (Multi IO)
- Alarm output (Multi IO)
- Standby contact input (Multi IO)
Product Specifications
- HS Code #84198998
- Cooling capacity at 20 °C620 W
- Ext. dim. (WxDxH)220 x 525 x 480 mm
- Ext. depth525 mm
- Ext. height480 mm
- Ext. width220 mm
- Power supply frequency50/60 Hz
- Heating capacity1500 W
- IP codeIP 21
- Max. delivery pressure0.5 bar
- Max. suction pressure0.25 bar
- Max. temperature100 °C
- Max. voltage115 V
- Max. volume bath4 l
- Min. temperature-30 °C
- Min. volume bath1.4 l
- Plug typeUS
- Power supply115 V, 50/60 Hz
- ProgrammableYes
- RefrigerantR290
- Temperature stability±0,1 K (-10 °C)
- Temperature-30 ... 100 °C
- TypeHRC 2 GREEN control
- Type of auxiliary energyMains connection
- Volume bath1.4 ... 4 l
- Weight26.5 kg
- With timerYes
